Range
- Two-bolt pipe clamps, medium and heavy pattern

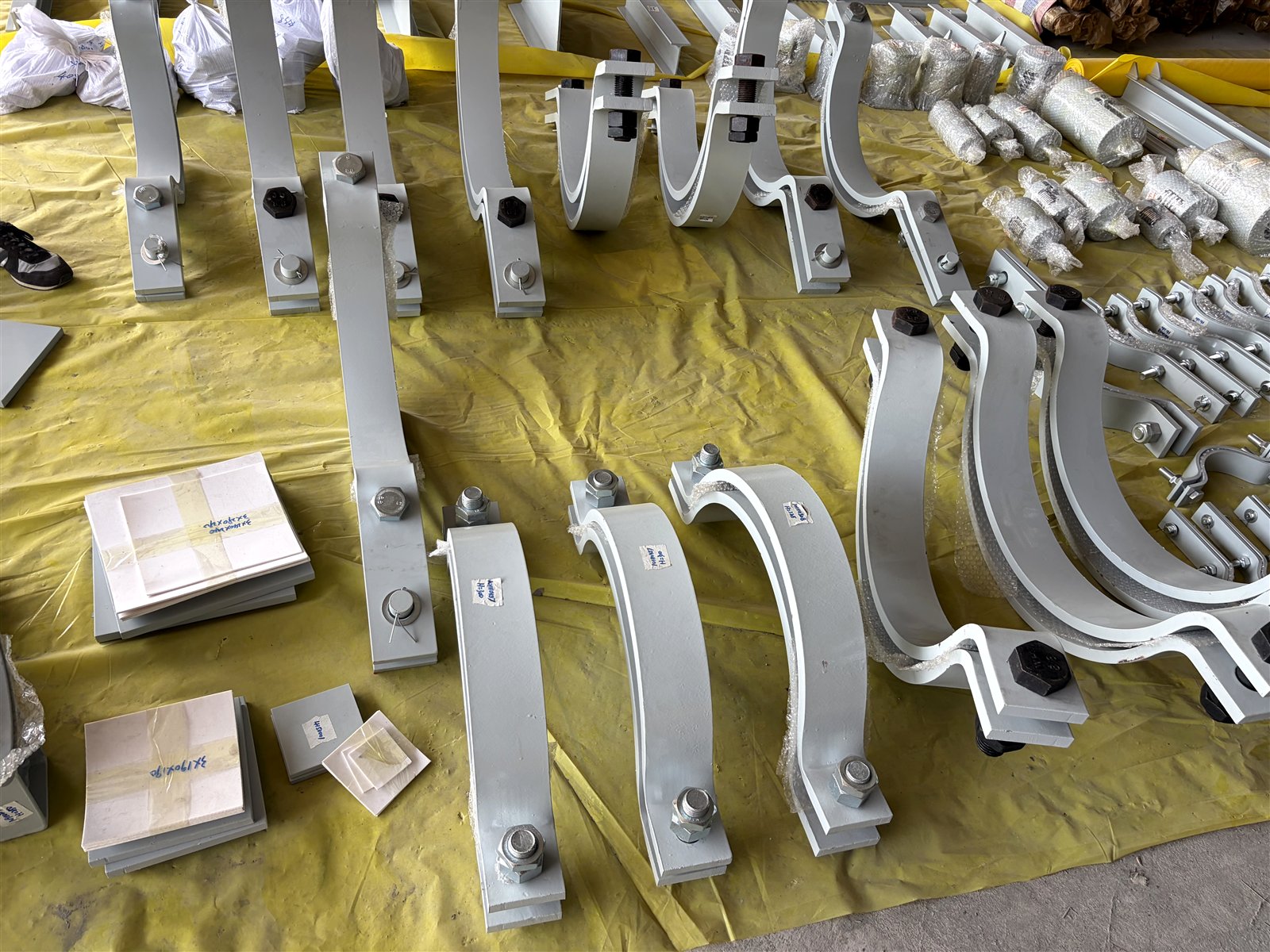

- Three-bolt clamps for insulated / high-temperature lines

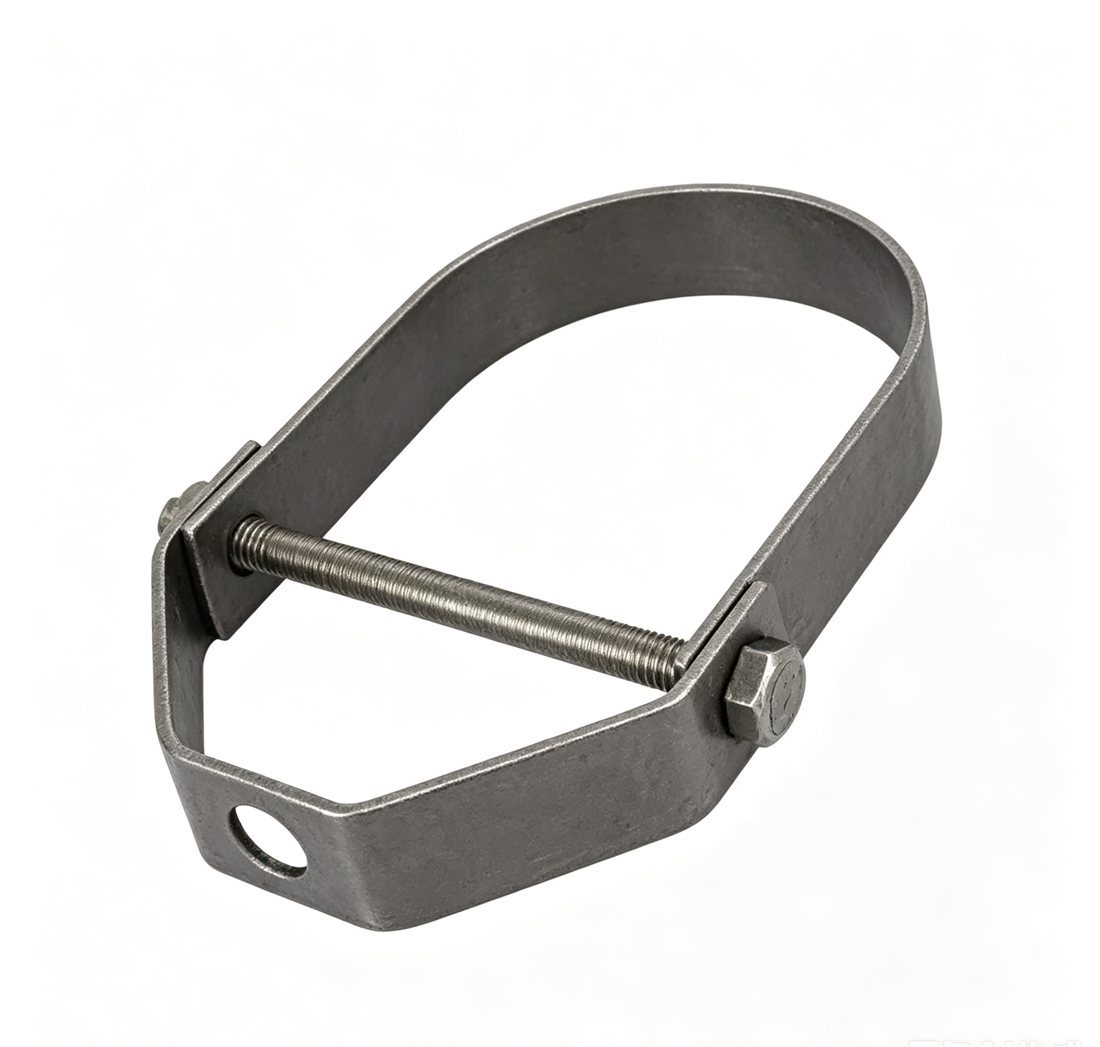

- Clevis hangers with cross bolt and rod nut
- Riser clamps with support lugs
- Insulation-protection saddles and shields
Typical Specification
| Item | Range / Detail |
|---|---|
| Pipe sizes | DN15 – DN1200 (½" – 48") |
| Materials | Carbon steel Q235/Q355; stainless 304/316 |
| Finish | Plain, zinc plated, hot-dip galvanized, epoxy |
| Temperature | Patterns for hot lines with alloy option on request |
| Packing | Bagged/boxed per size, palletized for sea freight |
Ordering
Quote from your BOM: quantity per size, material and finish. Mixed containers across clamp types and sizes are standard practice for project shipments.
Use photos to support a line-by-line enquiry

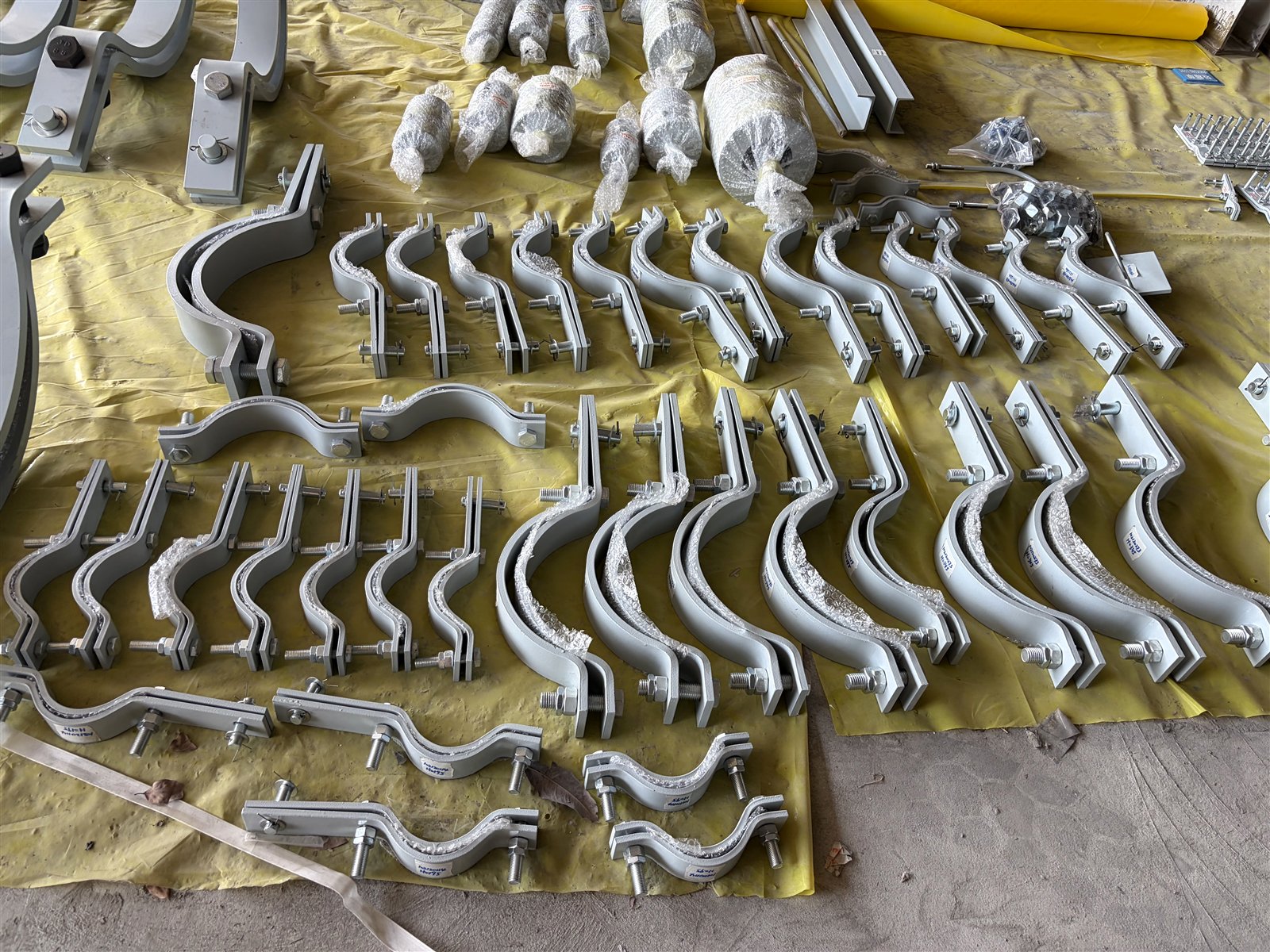

The factory photograph below shows rows of curved clamp assemblies, fitted bolts and protective wrapping. It provides visual context, not a material certificate, load rating or inspection result.
Match each reference photo to its BOM line or item tag. Include the drawing number and revision, state whether quantities mean pieces or complete sets, and mark unconfirmed fields TBC. Use the clamp and hanger review checklist to organize dimensions, interfaces and project requirements before sending your enquiry.
Engineering resources
- Clevis hanger vs pipe clamp — technical comparison
- MSS SP-58 hanger types A–G, explained
- Pipe support spacing — suggested maximum spans
- Coatings and finishes for pipe supports — coastal, hot and alloy lines
Frequently asked questions
What information do you need to quote pipe clamps and clevis hangers?
A bill of materials is enough: quantity per pipe size, the pattern (two-bolt, three-bolt, clevis or riser clamp), material and finish. If you are working from a support schedule or project standard, send the drawing reference and we match it item by item.
Which patterns and standards do you follow?
The range covers the familiar MSS SP-58 hanger patterns — two-bolt and three-bolt clamps, clevis hangers with cross bolt and rod nut, and riser clamps with support lugs — and we fabricate to project standard drawings on request. Three-bolt clamps suit insulated and high-temperature lines.
What materials and finishes are available?
Carbon steel Q235/Q355 and stainless 304/316, covering DN15 to DN1200. Finishes are plain, zinc plated, hot-dip galvanized or epoxy — HDG is the usual choice for GCC coastal and outdoor plant environments, and an alloy option is available for hot lines on request.
Can you ship mixed sizes in one container, and is there a minimum order?
Yes — mixed containers across clamp types and sizes are standard practice for project shipments, so one order can cover a full support schedule. Minimum order quantities depend on size and finish and are confirmed at quotation.
What documentation and packing are provided?
Items are bagged or boxed per size and palletized for sea freight, with a detailed packing list per pallet. Material certificates are available on request, together with the commercial documents your customs clearance requires.
