Pipe Supports for Power Plants

Power-plant piping is where engineered spring supports earn their keep. Main steam, hot and cold reheat, extraction and feedwater lines all move with temperature, and every hanger on the stress isometric carries a defined hot load, cold load and travel. We manufacture and export the supports behind those tags — variable and constant spring hangers plus the rigid supports, clamps and attachments that complete the schedule — from an established manufacturing base in China.

What we supply

• Variable spring hangers — MSS SP-58 design practice, loads ~0.2 to 100+ kN, travel to 50 mm, with travel stops fitted for hydrotest
• Constant force hangers — for large vertical movement on main steam and reheat lines where load variation must stay tight
• Pipe shoes, guides & anchors — fabricated rigid supports for BOP and utility piping
• Pipe clamps & clevis hangers and U-bolts & threaded rods — the bulk hardware that fills out the same tag list

Power-generation installation references

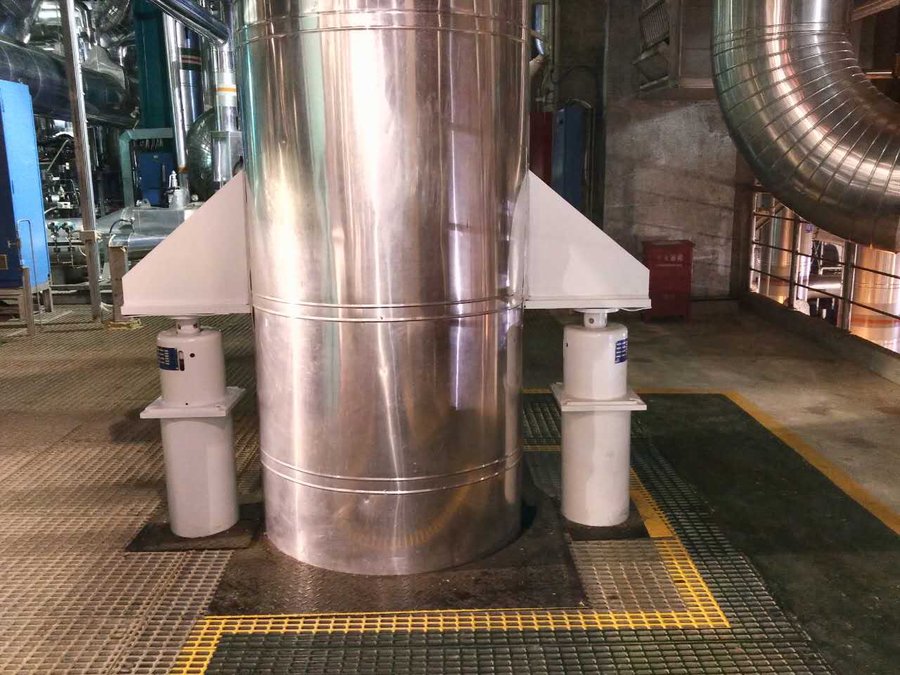

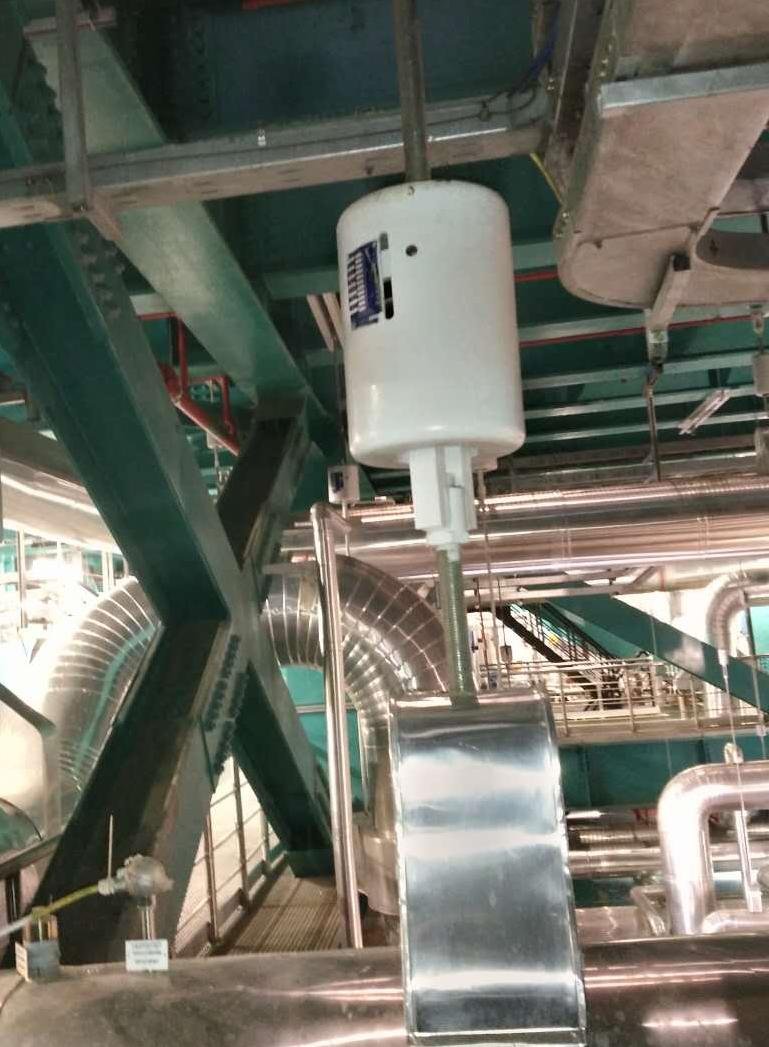

See the installation context behind the product categories. Our anonymized field archive includes constant-support installations above insulated piping at a power-generation facility and cylindrical damping-unit installations at a coal-power facility. The photographs show the surrounding pipework, support interfaces and site access; project and customer names are withheld.

For an initial comparison with your own installation, include a wide view of the piping and structure, a close view of each connection, and the support tag or controlling drawing revision. That allows the visible arrangement to be reviewed alongside the engineering inputs, rather than selecting a product from its appearance alone.

The photographs are application references, not model-specific performance or acceptance records. Loads, travel, temperature, material and supplied scope for a new enquiry must come from the relevant project documents.

See the field-reference archive · Prepare installation details · Review hydraulic snubber selection inputs

Why power-plant buyers work with us

We work from your stress analysis output, tag by tag. Send the hanger schedule or marked-up isometrics — hot load, cold load or travel with direction, pipe size and temperature — and we size each spring support, return a data sheet per tag, and quote complete assemblies: spring unit, turnbuckles, rods, clamps and building attachments, so nothing has to be sourced separately at site.

Documentation follows the same tag structure, which is what project QA files need: data sheets per support, dimensional and inspection reports, and EN 10204 3.1 material certificates on request, plus full export packing documents. Finishes run from red-oxide primer as standard to epoxy systems or hot-dip galvanizing to project spec.

How to send an inquiry

Email or WhatsApp your hanger schedule, tag list or stress isometrics — native files or PDF mark-ups both work. We come back with an itemized offer, typically within 24 hours on working days, and flag any tags where the load data needs clarifying before we commit a size.
